機器簡介
FGB6800高性能集裝袋縫紉機，采用單直機針、擺梭勾線、上下復合送料，腳踏回縫，操作簡便,構成雙線鎖式線跡。由于本機器采用特殊的上送料機構和壓腳交叉提升機構,它除具有一般工業縫紉機的各項性能之外,其優點是對各種集裝布、吊帶等縫料和潛移性較大的中厚料,在縫紉過程中能使上層和下層送料量達到一致,在高低重疊縫紉和爬坡縫紉時,送料爽、針距穩定、線跡平整而美觀、縫厚料、薄料性能穩定、操作省力等優點，同時還可以按集裝袋工藝的特殊要求進行調節，正縫、倒縫、打橫針操作簡便自如，并可縫紉加防塵條的包裝制品。
Brief Introduction of Enterprise

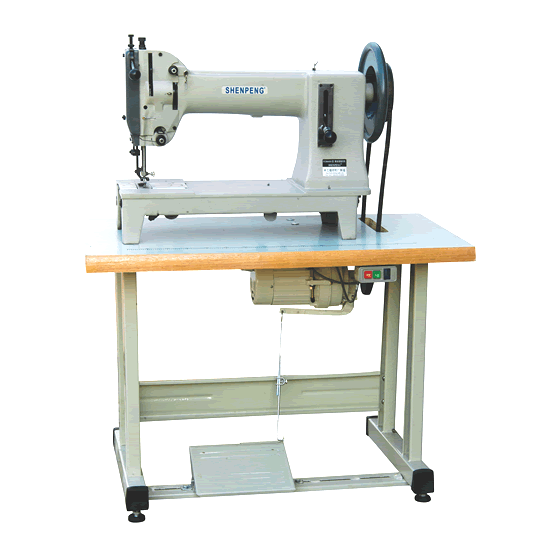

FGB6800 High-performance sewing machine for containing bag adopts single straight needle. oscillat-ing shuttle thread hooking mechanism.upper and lower combined feeding and foot pedal back sewing. It is easy to operate .It forms 2-thread locd stitch. This machine adopts special upper feeding mechanism and presser cross lifting mechanism, besides the various properties same with other general industrial sewing ma-chine, it has advantages of same feeding size of upper layer and lower layer when sewing different containcloth and sling and medium or thick material with big potential moving property, easy to feeding when makehigh and low over-lap sewing and climbing sewing. It has sterdy stitch size, smooth and beautiful stitch. It is easy to operate and has steady property when sewing thick material or thin material. At the same time, it couldbe regulated according to special requirement of containing bag technolgy. It is easy to sew in forward stitch, invrted stitch and horizontal stitch. It could sew the packing products with dust-proof strip.
主要技術規格 Technical Specifications
|
縫紉速度 900針/分
Speed of sewing |
|
機頭外型 736×270×590 mm
Shape of head |
|
針距長度 0-13 mm
Length of needing distanse |
|
電動機功率 550瓦 1400轉/分（縫紉機專用電機）
Power of electric motor 550W 1400R/Min (Special purpose electric motor for sewing machine) |
|
壓腳提升高度 手控14 mm 腳控22 mm
Presser lifting Manual control 14mm feet control 22mm |
|
操作空間 200×420mm
Operating space |
|
機針型號 7×(200/230/250/300)
Model of needle |
|
縫線型號 臘線25/3∽18/7股，麻線2X7股，尼龍線2∽24號
Model of sewing thread Waxed thread 25/3∽18/7strands flaxen thread2X7 strands Nylon thread No. 2∽24 |
|
